DemirDöküm Burner

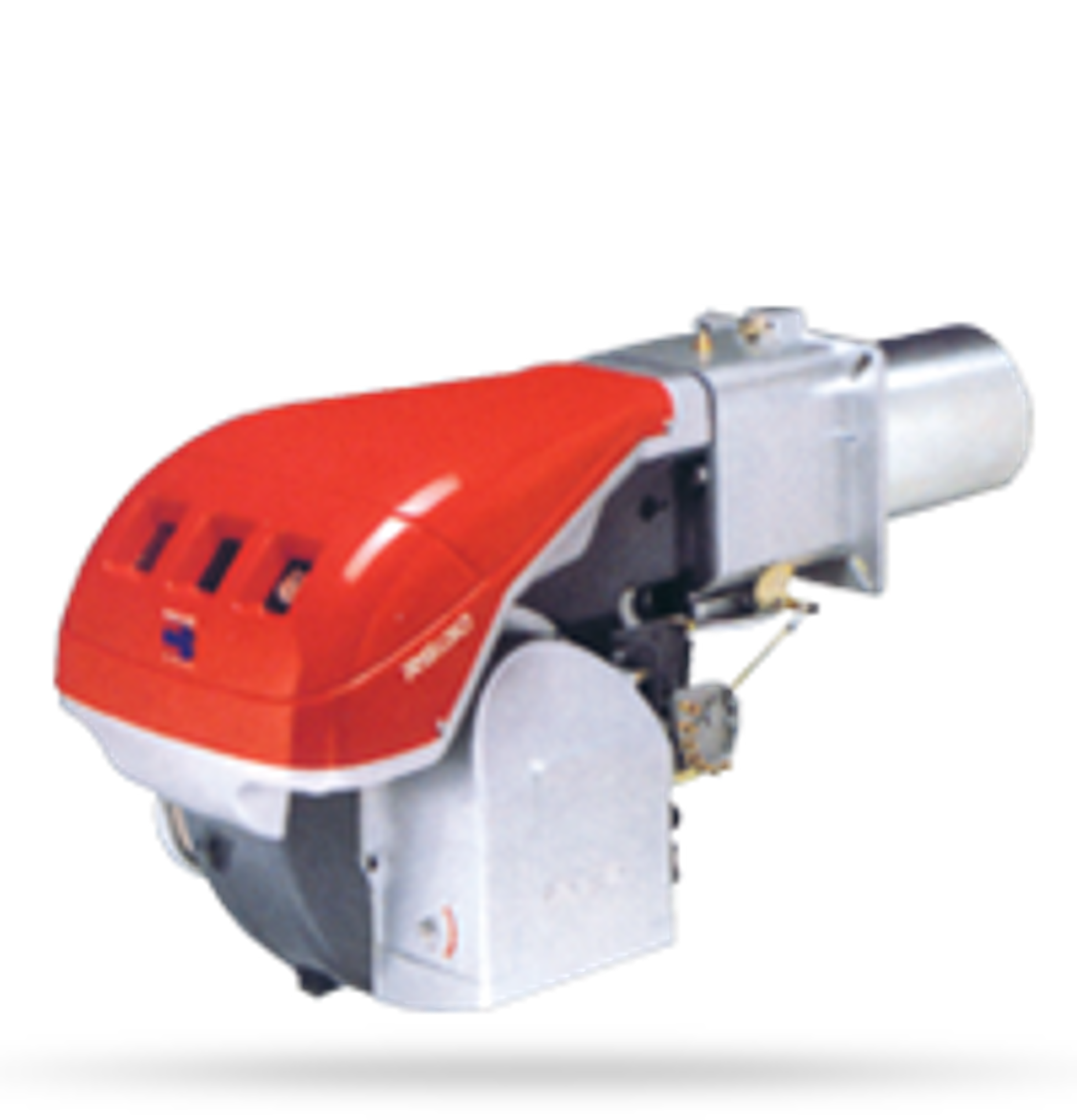

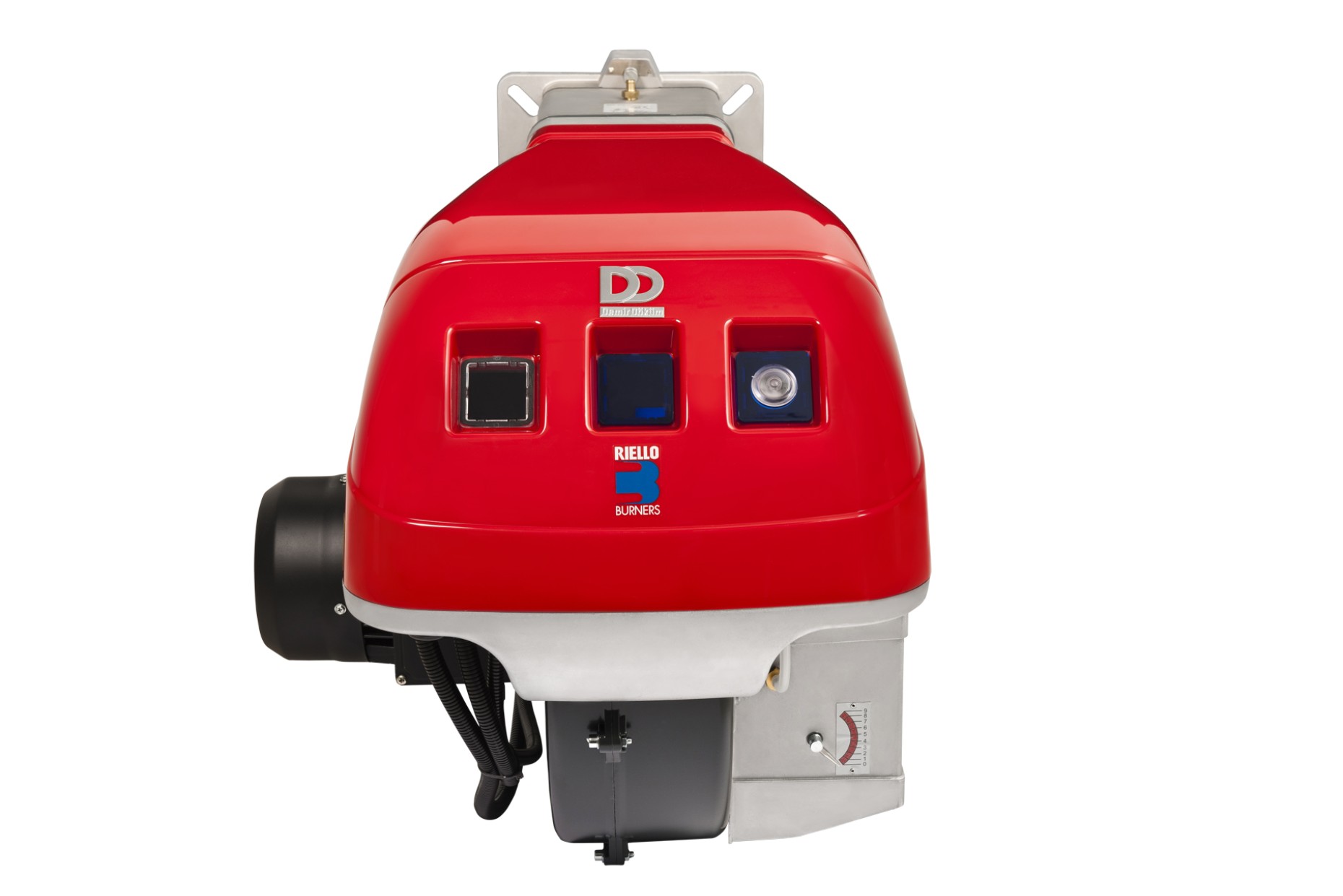

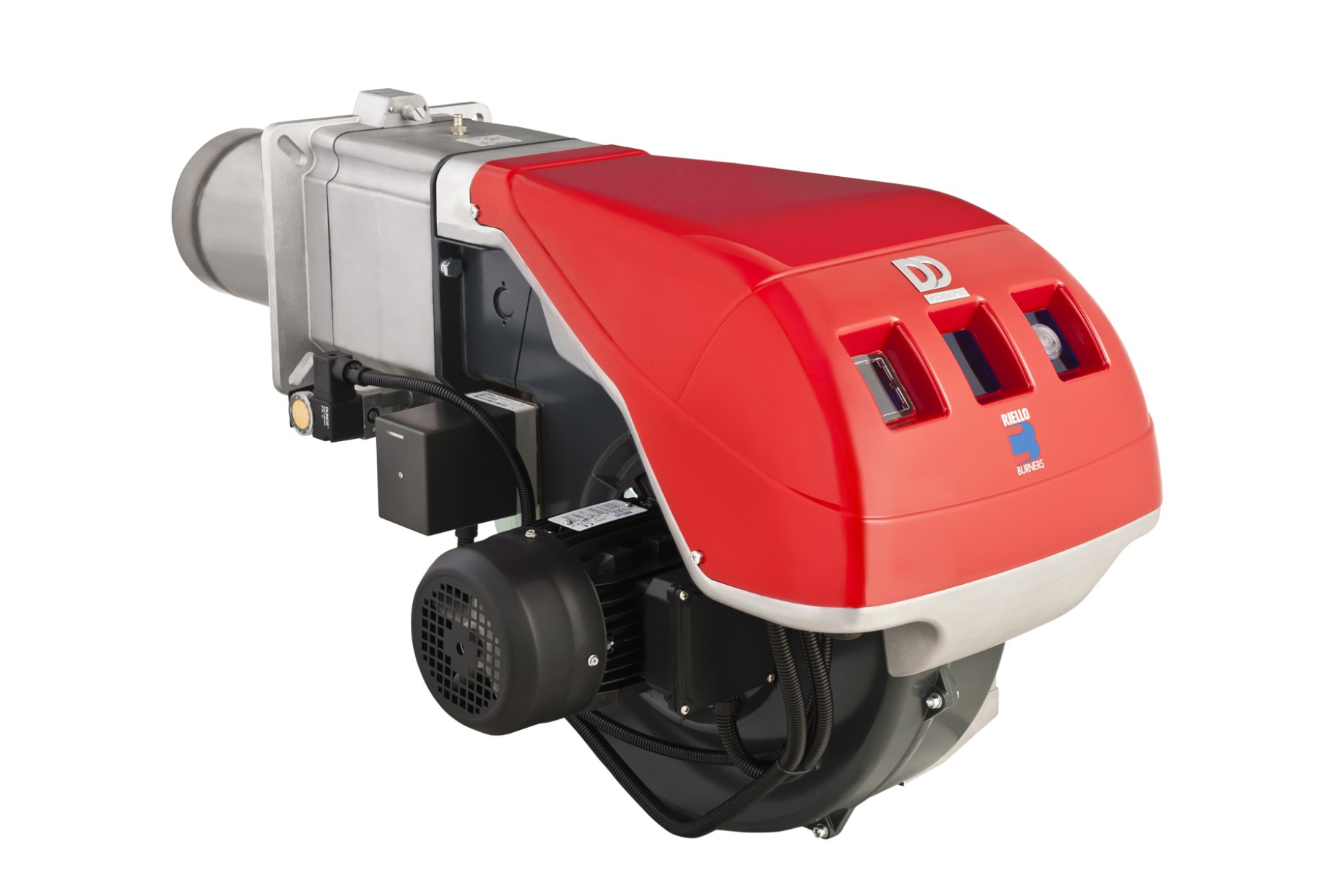

RS Series Proportional Burners

Superior Features

Maximum Fuel Saving

Burner models with single grade, double grade, and proportional modulation mix air and fuel in optimum proportions and provide fuel saving.

Low Sound Level

Thanks to their special design, DemirDöküm burners operate at a very low sound level without requiring burner silencers.

Easy Maintenance

All components on burners provide reach to combustion head without disassembling the burner thanks to the sliding mechanism during service.

Specifications

Specifications

RS 34/MRS 44/MRS 50/MRS 70/MRS 100/MRS 130/MRS 190/M
General Properties
Double grade operationYesYesYesYesYesYesYes
Operation with ModulationYesYesYesYesYesYesYes
FuelNatural GasNatural GasNatural GasNatural GasNatural GasNatural GasNatural Gas
Capacity
Capacity 2nd gradekW125 - 390203 - 550290 - 580465 - 930898 - 1.163930 - 1.6001.279 - 2.290
Capacity 2nd gradeMcal/h108 - 336175 - 473249 - 499400 - 800600 - 1.152800 - 1.3761.100 - 1.970
Capacity 1st gradekW708085135150160470
Capacity 1st gradeMcal/h606973116129138405
Efficiency
Net thermal valueMcal/Nm38,2 - 78,2 - 78,6 - 7,48,6 - 7,48,6 - 7,48,6 - 7,48,2 - 7
Net thermal valuekWh/Nm39,45 - 8,139,45 - 8,1310 - 8,610 - 8,610 - 8,610 - 8,69,45 - 8,13
Absolute densitykg/Nm30,71 - 0,780,71 - 0,780,71 - 0,780,71 - 0,780,71 - 0,780,71 - 0,780,71 - 0,78
Max. CapacityNm3/h41 - 4858 - 67,658 - 6881 - 94116 - 135151 - 175230 - 267
Pressure at max. efficiencymbar15,4 - 22,815,9 - 22,77,2 - 10,610,3 - 15,29,3 - 13,78,6 - 12,715 - 22
Electrical Properties
Electric sourceV230 V ± %10230 V ± %10230 - 400 neutralized ~+ / - 10 %230 - 400 neutralized ~+ / - 10 %230 - 400 neutralized ~+ / - 10 %230 - 400 neutralized ~+ / - 10 %230 - 400 neutralized ~+ / - 10 %
Electric sourceHz50/60 Single phase50/60 Single phase50- three phase50- three phase50- three phase50- three phase50- three phase
Electric motorrpm2.8002.8002.8002.8002.8002.8002.800
Electric motorW3004206501.1001.5002.2004.500
Electric motorV220 - 240220 - 240220 - 240 - 380 - 415220 - 240 - 380 - 415220 - 240 - 380 - 415220 - 240 - 380 - 415220 - 240 - 380 - 415
Electric motorA15173 - 1,74,8 - 2,85,9 - 3,48,8 - 5,19,1 - 15,8
Motor kondansatörüµF/V12.5 / 40012,5 / 4258 - 450
Ignition transformatorV1 -V2230 V - 1 x 15 kV230 V - 1 x 15 kV230 V - 1 x 15 kV230 V - 1 x 8 kW230 V - 1 x 8 kW230 V - 1 x 8 kW230 V - 1 x 8 kW
Ignition transformatorI1 -I21 A - 25 mA1 A - 25 mA1 A - 25 mA1 A - 20 mA1 A - 20 mA1 A - 20 mA1 A - 20 mA
Electric power consumptionW maks6007007501.4001.8002.6005.500
Electric protection levelIP 40IP 40IP 44IP 44IP 44IP 44IP 44
Other
OperationInterrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none)Interrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none)Interrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none)Interrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none)Interrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none)Interrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none)Interrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none)
Standard ImplementationBoilers: Water, Vapor, Hot OilBoilers: Water, Vapor, Hot OilBoilers: Water, Vapor, Hot OilBoilers: Water, Vapor, Hot OilBoilers: Water, Vapor, Hot OilBoilers: Water, Vapor, Hot OilBoilers: Water, Vapor, Hot Oil
Environment temperature°C0 - 400 - 400 - 400 - 400 - 400 - 400 - 40
Combustion air temperature°C maks60606060606060
Sound leveldBA707272757778,583,1
