Superior Features
Warranty Period

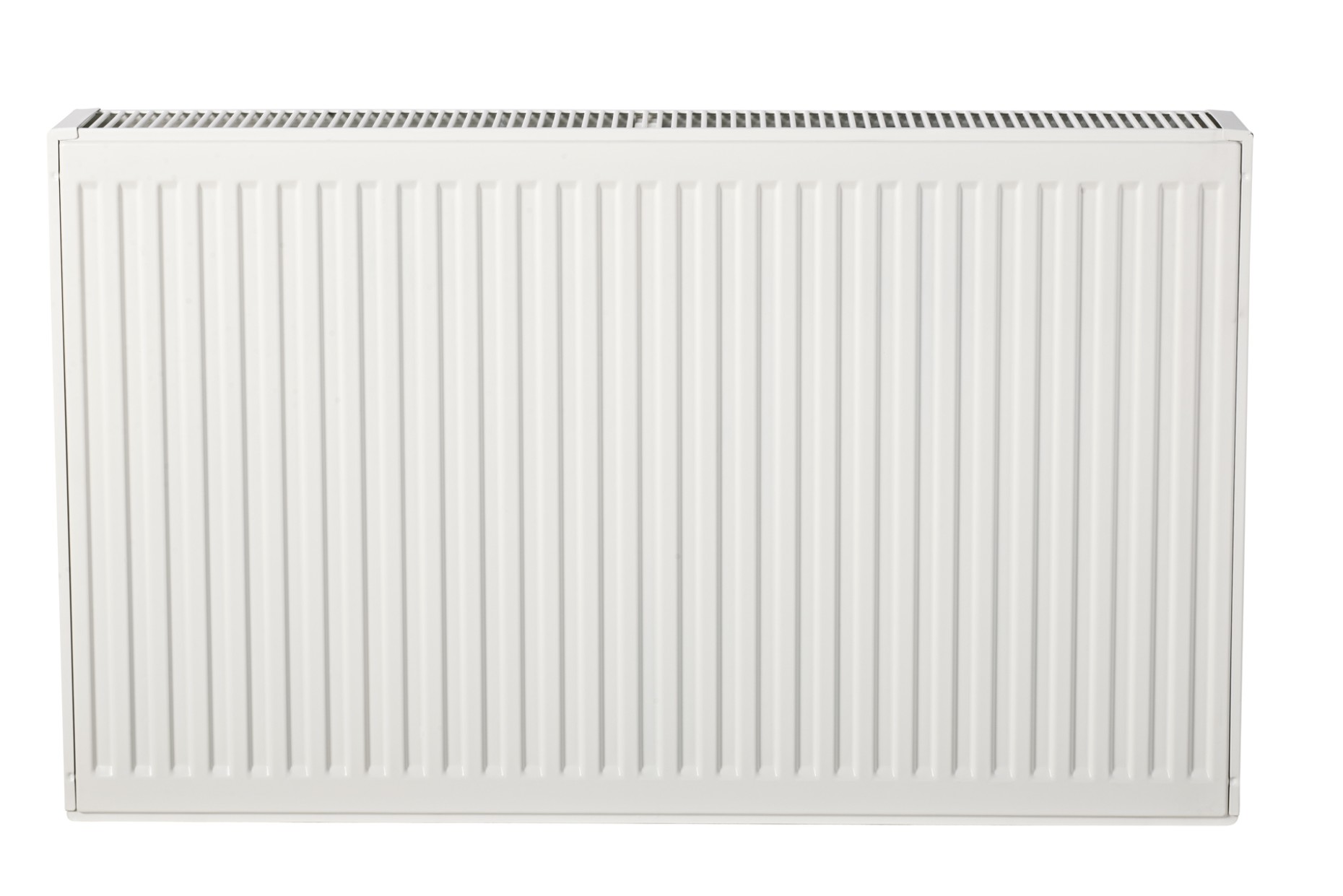

DemirDöküm 33 mm panel radiators, produced by using iron phosphate coating and wet dye technologies, are the first radiators launched to the market for sale with 10-year warranty in Turkey.
High Operational Pressure
DemirDöküm 33 mm panel radiators, tested under 13 bars, enable high operational pressures.
400-3000 mm Range Length Choices
Length choices between the range of 400-3000 mm are provided with 33 mm panel radiators
Removable Upper Cap
Easily removed upper cap enables the radiator to be cleaned easily.
High Corrosion Resistance
DemirDöküm panel radiators have high corrosion resistance and are durable with advanced Technology, unrivalled robot welding, spot welding that provides impermeability, high dye technology, and superior quality.
Superior Quality and Guarantee
All radiators have certificates such as TSE (Turkey), BSI (England), DIN (Germany) and CE and their quality is approved by the entire World. Has LRQI 9001, 14001 and OHSAS 18001 certificates approval.
Long-Lasting
DemirDöküm 33 mm panel radiators are coated with Zirconium and Cataphoresis dye. Corrosion resistance is 2-4 times higher in comparison to the radiators in which wet dye+iron phosphate is used.
Specifications
Specifications
| DD 33 mm Panel | |
|---|---|
| General Properties | |
| Type | 22 |
| Pitch Distance mm | 33 |
| Dye | Zirconium |
| Test Pressure bar | 13 |
| Warranty | 10 Years |
| Capacity | |
| 300 mm (75 °C - 65 °C) watt | 968 |
| 400 mm (75 °C - 65 °C) watt | 1.199 |
| 500 mm (75 °C - 65 °C) watt | 1.425 |
| 600 mm (75 °C - 65 °C) watt | 1.651 |
| 900 mm (75 °C - 65 °C) watt | 2.347 |
| 300 mm (75 °C - 65 °C) kcal/h | 832 |
| 400 mm (75 °C - 65 °C) kcal/h | 1.031 |
| 500 mm (75 °C - 65 °C) kcal/h | 1.226 |
| 600 mm (75 °C - 65 °C) kcal/h | 1.420 |
| 900 mm (75 °C - 65 °C) kcal/h | 2.018 |
| Dimensions | |
| Height mm | 300-400-500-600-900 |
| Length ( Min. - Max.) mm | 400 - 3000 |
| Depth mm | 105 |
| Weight ( For 600 mm - 1 m) kg | 32,8 |
| Specific Features | |
| Water Volume lt | 6,8 |
| Compact Valve Option | Get information from the authorized dealer regarding type and dimensions. |
| Compact Cap Option | No |
| Floor-Mounting Option | Yes |
