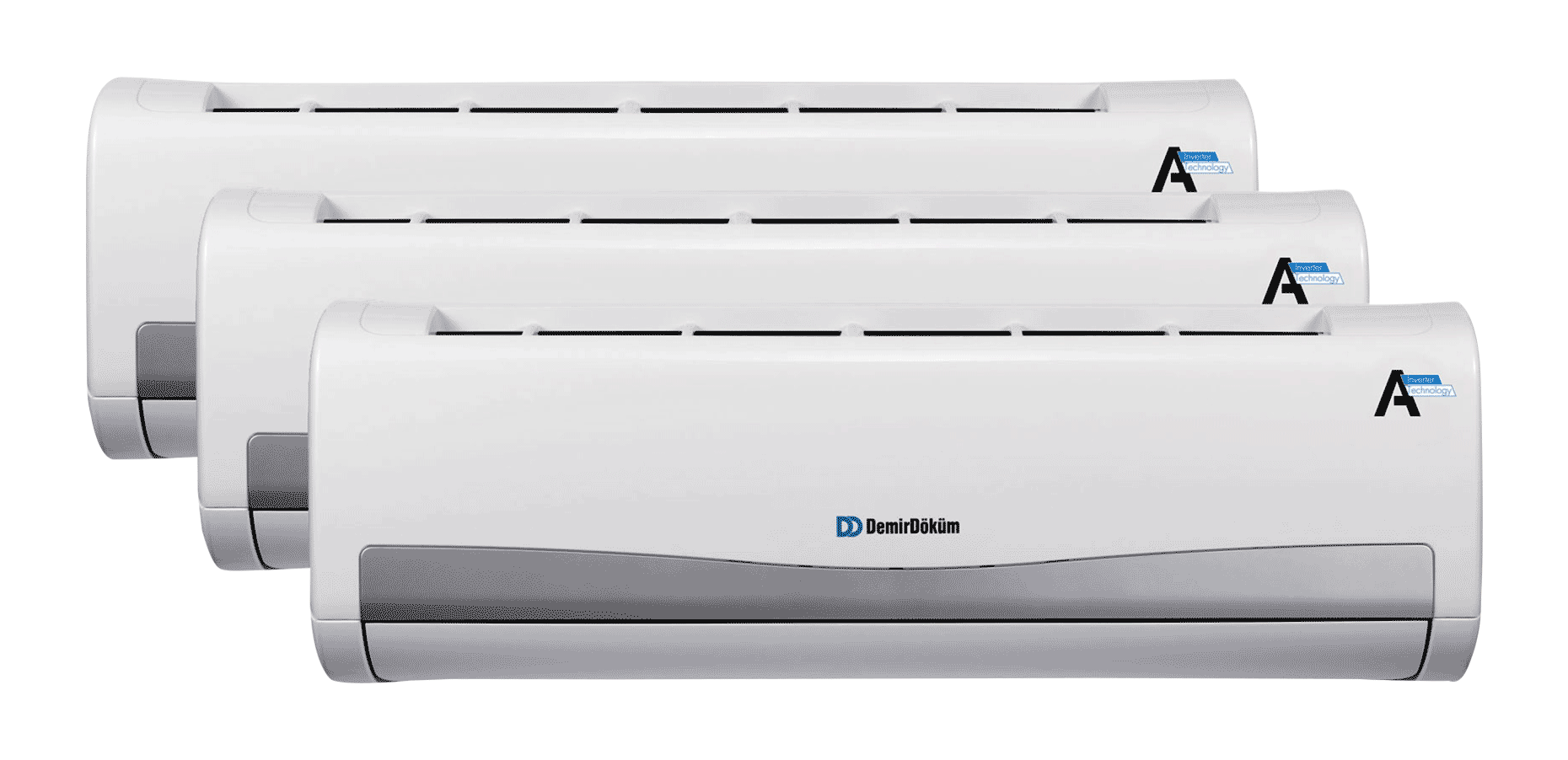

DemirDöküm Multi Inverter Air Conditioner
Interior Unit
Superior Features
Single Exterior Unit Advantage
In DemirDöküm Multi Inverter air conditioners, more than one interior units are operated with a single exterior unit. Since only one exterior unit is used in the systems, they are more silent, more energy saving, and occupies less space on your wall in comparison to 1:1 systems.
DC Inverter Technology
DemirDöküm Inverter A410 wall hung type split air conditioners with DC inverter compressor technology consumes less energy despite high heating/cooling performance with “A” energy efficiency. Consider both your comfort and wallet.
R410a Cooling Fluid
Thanks to the environment-friendly R-410a cooling fluid, DemirDöküm air conditioners do not harm the ozone layer as well as assisting more air conditioning using less energy with high power-carrying capacity.
A Class Energy Efficiency
DemirDöküm air conditioners provide low energy consumption and economic usage despite high heating/cooling performance with A class energy efficiency.
Ionizer
Dust particules charged with positive electricity and hanging in interior ambient air become heavier with negative ions and precipitate to the ground by the any on device emitting negative ions. This way, ambient air is cleaned off the dust.
Hot Start
When the device is switched to heating mode, blowing is not performed until interior unit evaporator reaches the desired temperature. When sufficient temperature is achieved, only hot air is blown.
Specifications
Specifications
Multi Inverter 2,5 kW | Multi Inverter 3,5 kW | Multi Inverter 5 kW | |
---|---|---|---|
General Properties | |||
Sleep mode | Yes | Yes | Yes |
Additional electrical resistance | No | No | No |
Auto restart | Yes | Yes | Yes |
DC Inverter technology | Yes | Yes | Yes |
Cooling liquid | R 410a | R 410a | R 410a |
Activated carbon filter | Yes | Yes | Yes |
Anti bacterial filter | Yes | Yes | Yes |
Anti dust filter | Yes | Yes | Yes |
Anti freeze unit | Yes | Yes | Yes |
Follow me | Yes | Yes | Yes |
Ionizer | Yes | Yes | Yes |
Jet Cool | Yes | Yes | Yes |
Hot Start | Yes | Yes | Yes |
Program timer | Yes | Yes | Yes |
Capacity | |||
Capacity (Cooling)kW | 2,6 | 3,5 | 5,0 |
Air Flow Rate (Interior Unit)m³/h | 250 / 300 / 500 | 310 / 450 / 580 | 570 / 800 / 850 |
Capacity (Heating)kW | 2,9 | 3,8 | 5,1 |
Capacity (Heating)BTU/h | 9.900 | 12.980 | 17.410 |
Capacity (Cooling)BTU/h | 8.880 | 11.950 | 17.070 |
Efficiency | |||
Efficiency Class (Cooling) | A | A | A |
Efficiency Class (Heating) | A | A | A |
Dimensions (Interior Unit) | |||
Heightmm | 265 | 265 | 295 |
Widthmm | 790 | 790 | 920 |
Depthmm | 200 | 200 | 225 |
Weightkg | 8,5 | 8,5 | 11,5 |
Electrical Properties | |||
Power Consumed (cooling)W | 650 | 970 | 1.550 |
Power Consumed (heating)W | 680 | 990 | 1.410 |
Power supplyV,Hz,Ph | 220 - 230 V , 50 , 1 | 220 - 230 V , 50 , 1 | 220 - 230 V , 50 , 1 |
Sound Level | |||
Interior UnitdB(A) | 26/32/38 | 28/35/40 | 37/40/44 |
Installation Information | |||
Maximum copper pipe distancem | 25 | 25 | 25 |
Maximum layer difference between interior-exterior unitsm | 10 | 10 | 10 |
