DemirDöküm Floor Standings

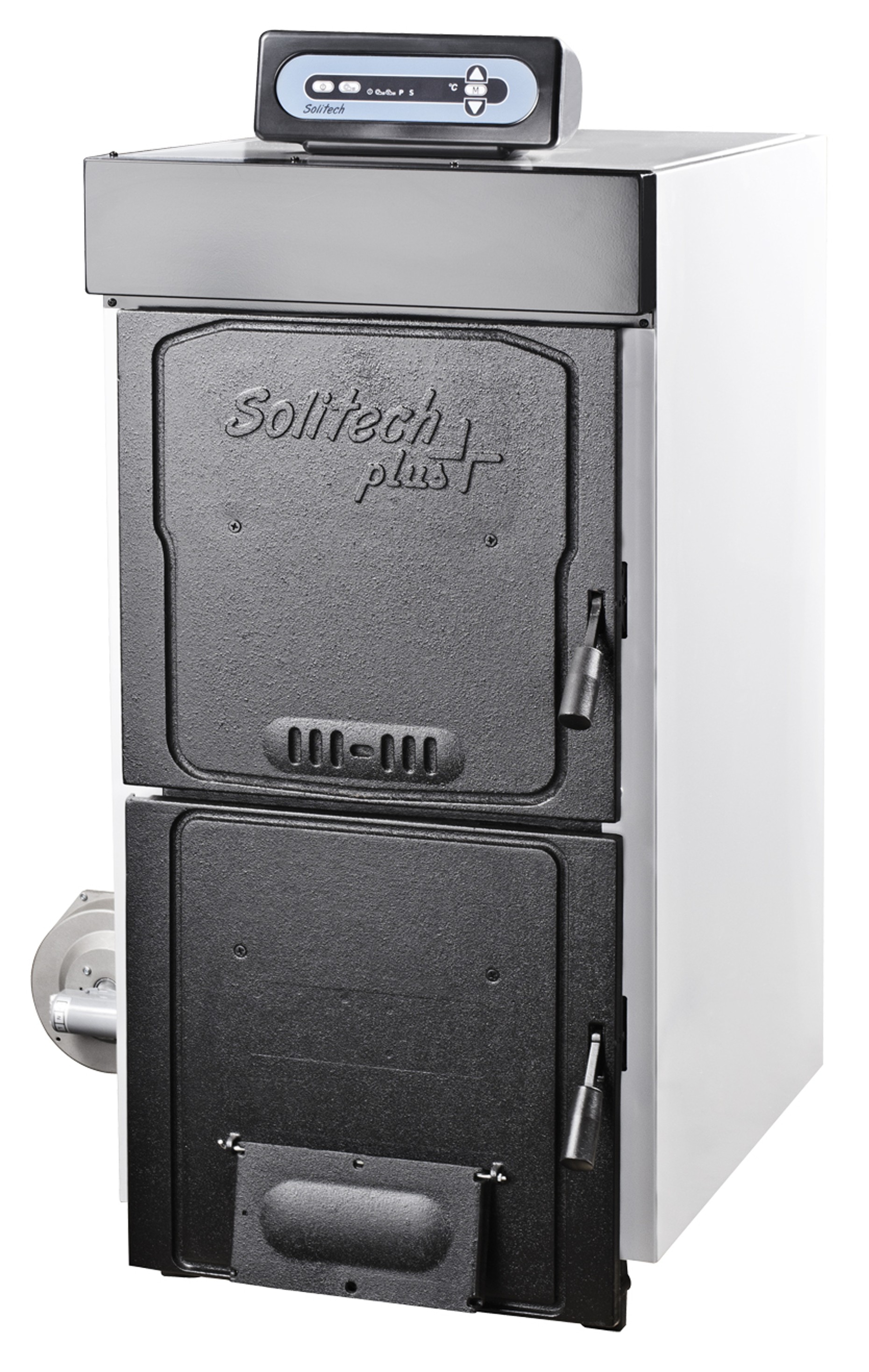

Solitechplus Floor Standings

Superior Features

3-Way Transition Principle

Thanks to the special design of combustion chamber, 3-way transitive structure enables high thermal efficiency and increases life and efficiency of floor standing.

High Resistance Against Corrosion with Flexible Casting Technology

Flexible Casting Technology design; has high resistance against corrosion caused by the use of low returning water temperature, low chimney gas temperature, and fuel with high rate of humidity.

Wide Area of Use

Wide water transitions and mid-size water traffic connections of Solitech Plus enable the use of the product in both natural circulation and pumped systems.



General Properties
3-way transition operating principleYesYesYes
Control panel coupled with the deviceYesYesYes
Fuel typeSolid FuelSolid FuelSolid Fuel
Package system with burner, pump, and expansion tankNoNoNo
Additional boiler optionYesYesYes
Thermal powerkW425375
Thermal powerMcal/h36,145,664,5
Number of SegmentsAd568
Efficiency value%707172
Efficiency Class2 stars2 stars2 stars
Boiler Dimensions
Combustion Chamber Dimensions
Combustion chamber volumecm³70.38989.100126.522
Fuel loading volumecm³42.66054.00076.680
Maximum fuel loading heightcm282828
Maximum fuel loadingkg273242
Minimum return water temperature°C505050
Combustion period at maximum loadingsa444
Temperature control range°C30 - 9030 - 9030 - 90
Safety system activation input temperature°C959595
Maximum operation pressurebar9533
Suggested fuel propertiesMaximum %15 humidMaximum %15 humidMaximum %15 humid
Installation Information
Water Volumelt344052
Maximum operating temperature°C100100100
Boiler water connection dimensionsR1 1/21 1/21 1/2
Chimney gas information
Chimney output diametermm160160160
Chimney gas temperature°C275290320
Chimney gas flow rateg/s26,933,846,5
Suggested chimney absorption valuembar0,15 - 0,260,15 - 0,270,15 - 0,3
